Shell Handling Trolley

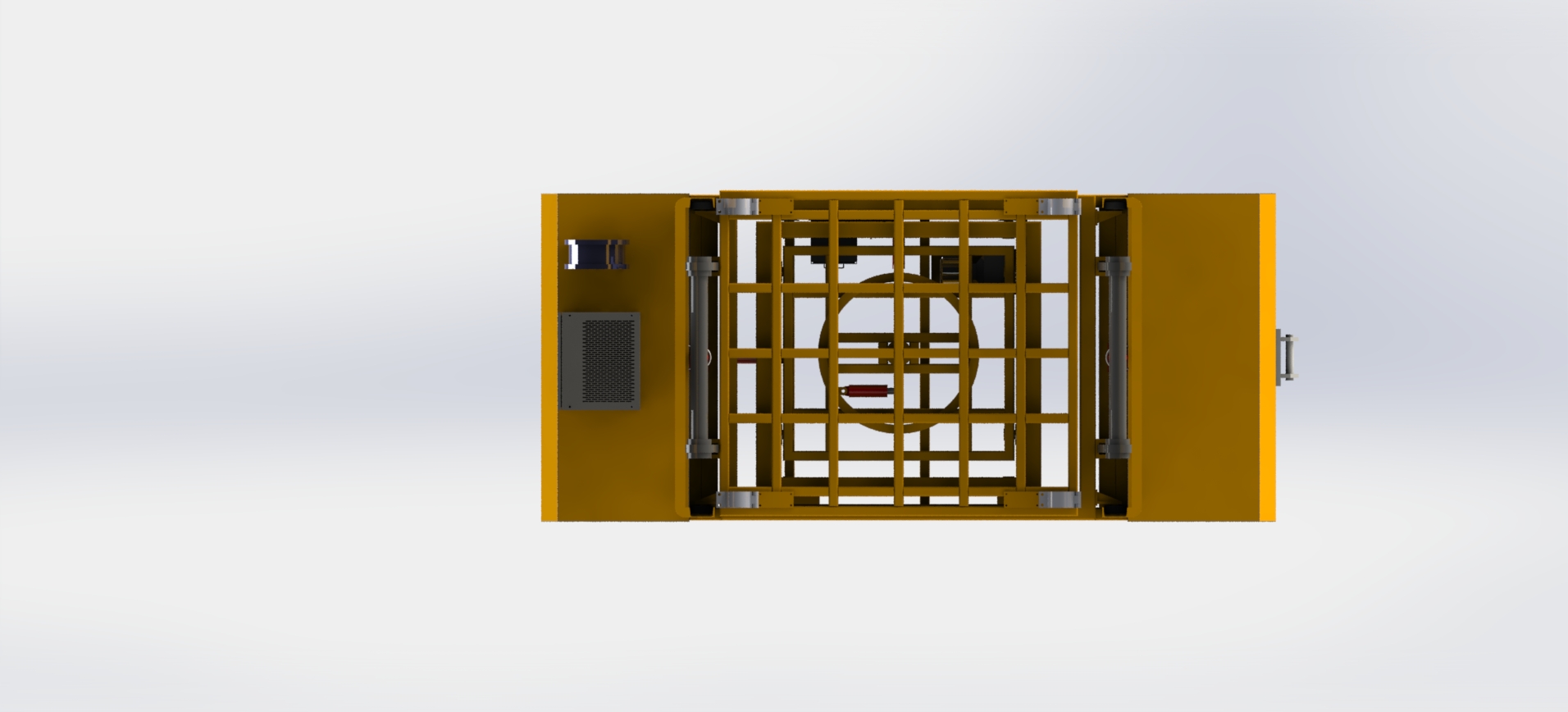

Landing Gear Installation Vehicle

This device is used to support and adjust the main landing gear replacements of certain wide-body aircraft. Its modular design offers a compact structure, simple assembly and disassembly, and convenient travel, towing, and transport. It features left-right and fore-and-aft movement, rotation around its center, and lift and pitch functions. Ground travel and alignment are powered by its own power source, which can be powered by batteries or an external power source. It is suitable for field operations in the field.

Get a Quote +86 184 5167 1889
  • Fast And Safe Logistics
  • 30-Day Return & Fast Free Shipping
Spec

Technical Parameters

  • Basic Infor
  • Serial Number Item Require
    1 Empty Weight About 3000kg
    2 Rated Load ≥4000kg
    3 Maximum Height When Fully Retracted ≯1800mm
    4 Lifting Stroke ≥1000mm
    5 6 Lifting Speed 500mm/min（Adjustable）
    6 Floating Table Rotation Angle Fine Adjustment ±10°
    7 Maximum Pitch Angle 6°
    8 Wheel Mecanum Wheel
    9 Walking Style 360°Omnidirectional
    10 Driving Speed 5km/h（Adjustable）
    11 Lithium Battery Life ≮4h
    12 External Power Cable Length ≥30m
    13 Dimensions 4500*2000*1500mm
    14 Total Equipment Power 20kW
    18 Braking Method Mechanical Brake
