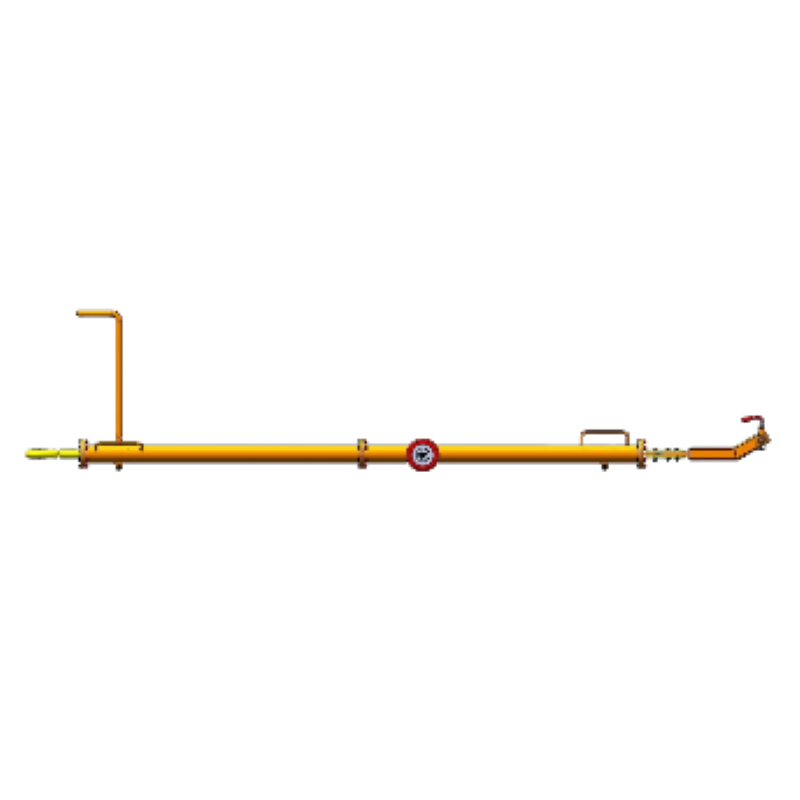

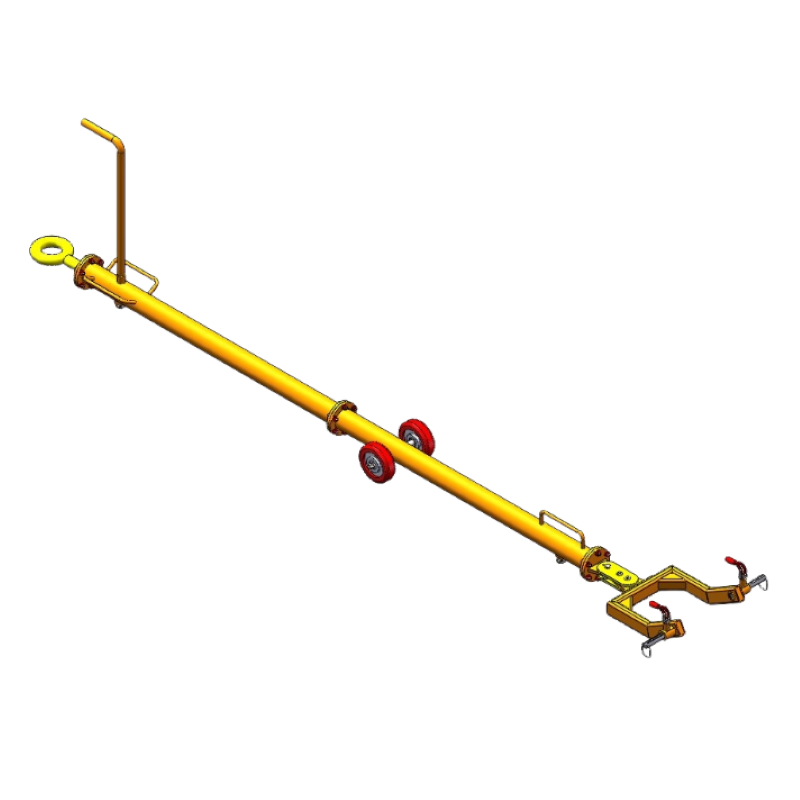

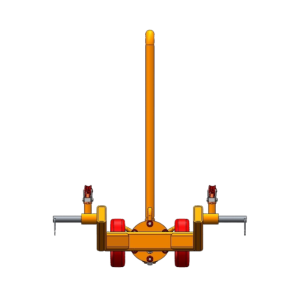

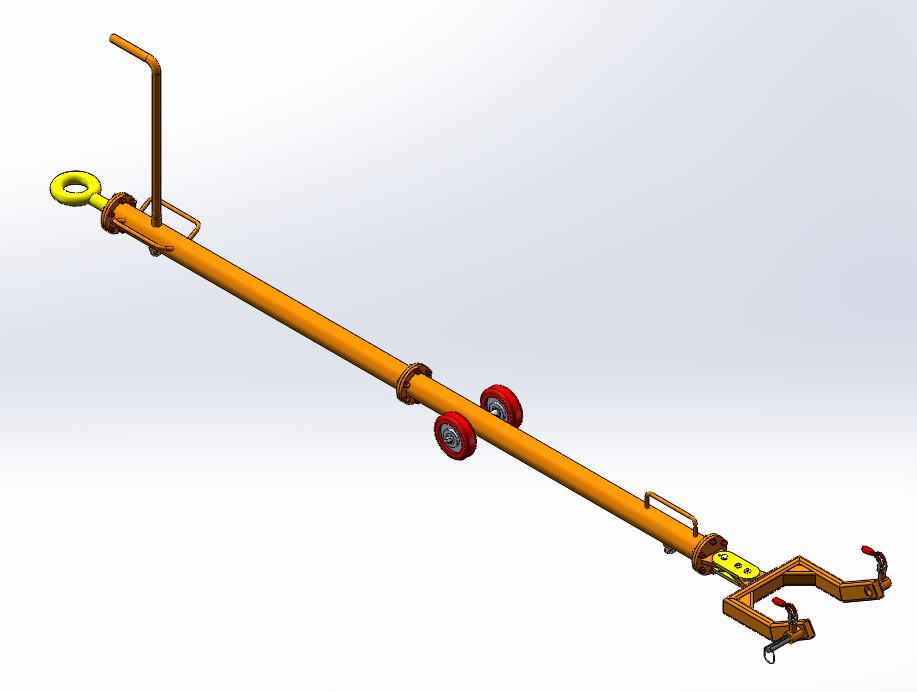

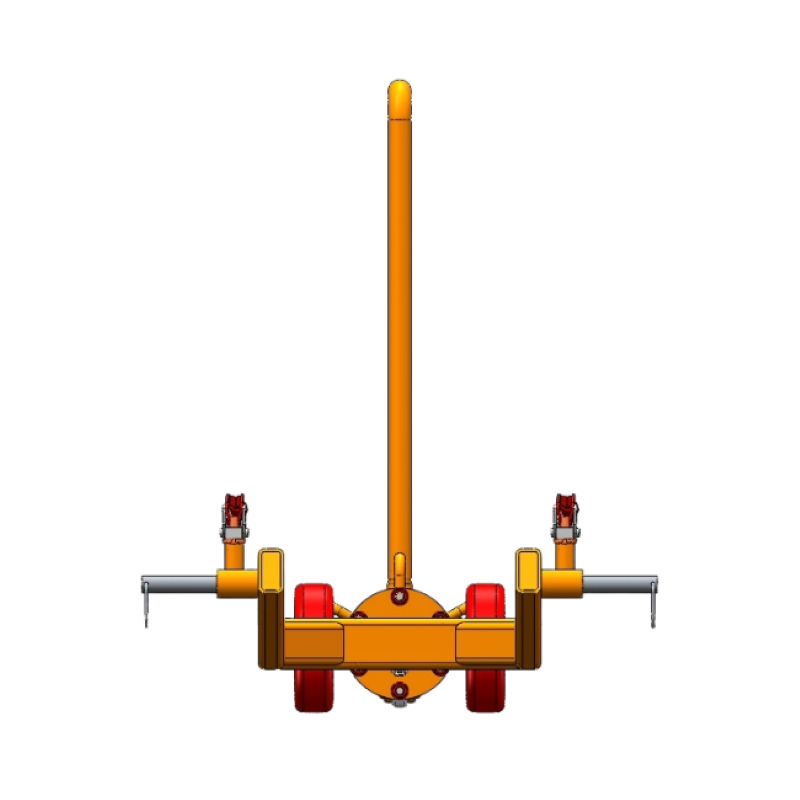

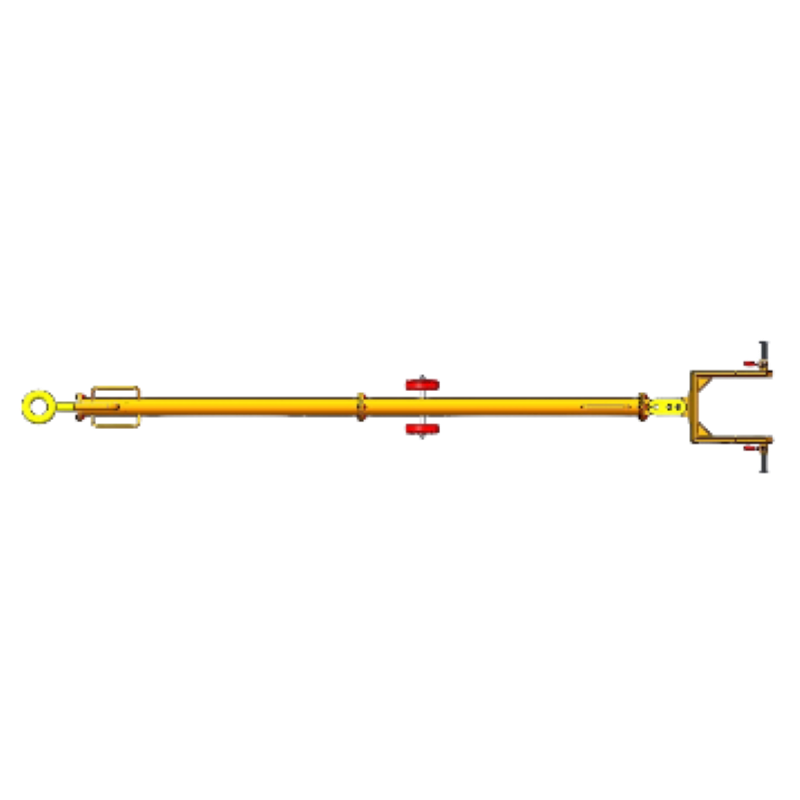

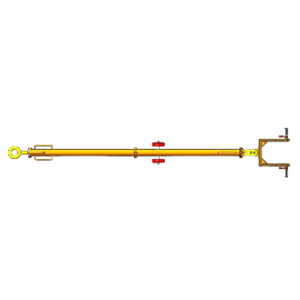

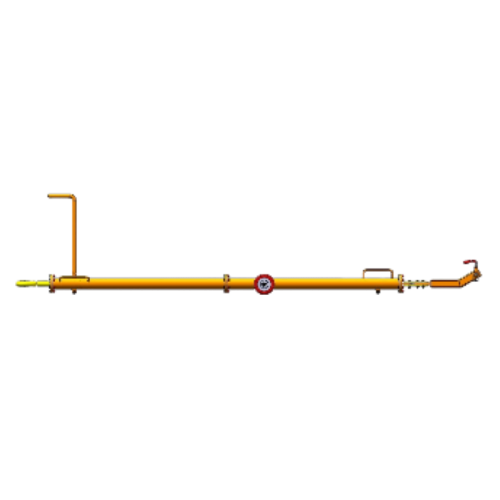

A certain type of UAV towing rod is a device used to connect the aircraft and the towing vehicle. The aircraft is pushed away or towed to the designated location through the towing rod.
A certain type of UAV towing rod is a device used to connect the aircraft and the towing vehicle. The aircraft is pushed away or towed to the designated location through the towing rod. It is an important part of the ground operation support equipment of modern airports.
1.Main frame: The main structure of the towing rod, which bears the force during pushing and pulling, is made of high-quality seamless pipes or high-strength aluminum pipes
2.Connection mechanism: The towing head uses pins or clamps to connect the front landing gear of the aircraft and has a locking function
3.Towing vehicle connector: The towing vehicle part is connected in the form of a towing ring and is equipped with a buffer device
4.Wheel system components: With walking wheels, the towing and dragging deployment is flexible
5.Safety lock: Ensure that it will not accidentally detach during the towing process, and can be disconnected in an emergency in the case of overload to avoid damage
The aircraft and the tractor are connected by a tow bar, and the tractor transmits power to the front landing gear of the aircraft through the tow bar to control the moving direction and speed of the aircraft and ensure that the aircraft moves along the predetermined path.
Pre-inspection: The towing rod has no deformation or cracks
Connect the aircraft end: Manually connect the aircraft landing gear towing head to the towing rod and lock it
Connect the towing vehicle: Connect the towing vehicle hook to the towing rod and lock it
Towing the aircraft: Start the towing vehicle, drive slowly, and tow the aircraft along the route
Regular inspection: Check whether the towing rod has cracks and deformation; whether the shear pin and the connector function normally
Environmental restrictions: Suspend operations when the road surface is icy or visibility is low
Storage: Avoid humid environments and do a good job of rust and corrosion protection
